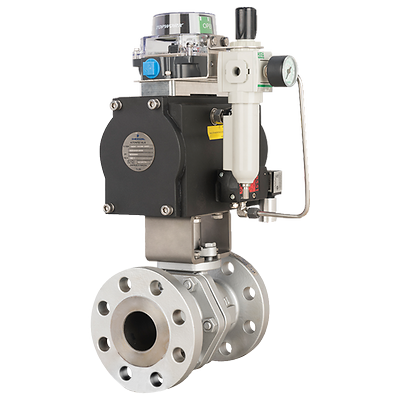

KTM Series EB1 OM-2 Split Body Floating Ball Valve with Powered Actuator

製品概要

The KTM Series EB1 OM-2 is a high performance, next generation ball valve complete with powered actuator, configurable by power source, size, function and more.

営業担当へのお問い合わせ
参考情報
ワークスペースに追加

機能

KTM Series EB1 OM-2 Split Body Floating Ball Valve
  • Superior valve design at a competitive price - The valve provides bidirectional shut-off for soft seat valves and diverse seat types, suitable for various applications.
  • The valve has been independently tested and proven to minimize emissions, contributing to a cleaner environment and compliance with regulations.
  • The valve has undergone fire testing and meets the requirements of two international standards, ensuring its safety and reliability in extreme conditions, such as those encountered in the oil and gas industry.
  • Bidirectional shut-off.
  • Valve fugitive emissions capability third party certified to ISO 15848-1.
  • Machined ISO actuator mounting pad.
  • Pure white E-seat (PTFE/PFA copolymer) seal relieves concern over product contamination.
  • Positive alignment of split body.
  • Fire test certified to API 607 5th edition and ISO 10497.
  • PTFE bearing and packing rings reduce wear.
  • Lower operating torque for ease of operation and reduced actuator cost.
  • Positive position indication.
Keystone F89 90度回転空気式アクチュエータ
  • 全ての Keystone バタフライバルブとボールバルブにダイレクトマウントが可能です。
  • Keystone標準（メートルネジ、インチネジ）とISO5211規格に取り付け可能です。
  • ダブルラックとピニオンの設計は、ピニオンシャフトのサイドロードを無くし、ベアリング摩耗を最小限に抑え、長寿命です。
  • 開閉位置（両端で+/- 5°）開度調整機能が標準搭載されており、最適な調整が可能です。
  • アノダイズ処理のアルミボディーに静電粉体塗装が施され腐食性環境においても耐久性は良好です。
  • 複作動と単作動が用意されており、経済的で安全な操作が行えます。
  • 12個までのスプリングパッケージが搭載可能で、トルク特性の異なるバタフライバルブとボールバルブ双方の出力特性に柔軟に対応可能です。
  • バネが伸び切らないスプリングパッケージと飛び出し防止ドライブピニオンにより、安全なメンテナンスと操作が可能です。
Emerson Powered Actuator
  • Direct mounting to all Keystone butterfly valves and ball valves.
  • Valve connection compatible with Keystone (imperial and metric) and ISO 5211.
  • Double Rack and Pinion design nullifies side loads on the pinion shaft, minimizing bearing wear and extending life.
  • Optimized product flow with standard mounted travel stops for valve position adjustment in open and close position (+/- 5° at each end).
  • Anodized aluminium body with electrostatic powder coating (ESPC) finish provides durable protection against corrosive environments.
  • Double acting and spring return versions available for cost effective and safe operation.
  • Up to 12 individual springs offer flexible torque range for both ball as butterfly valves.
  • Pre-compressed spring design and anti-blowout drive pinion means safe maintenance and operation.

仕様

KTM Series EB1 OM-2 Split Body Floating Ball Valve
Size Range
NPS ½ - 10 (DN 15 - 250)
Temperature Rating
-320°F to 932°F (-196°C to 500°C)
Pressure Rating
ASME Class 150, 300, 600, 900,1500
Body Design
Long Pattern, Side Entry
Material
304 Stainless Steel, 316 Stainless Steel, Alloy, Carbon Steel, Hastelloy, Inconel, Low Temp Carbon Steel, Stainless, Stainless Steel
Operating Temperature
-330 to 842°F (-200 to 450°C)
Pressure Class
ASME
Process Connection Type
150FF, 300RF, CL150RF, CL300RF, Flanged
Seat/Seal Type
Ball, Metal-to-Metal, Soft Seal
Shutoff Class
API 598, Class V (FCI 70-2), Class VI (FCI 70-2), Rate D (ISO 5208), Zero Leakage
Standards
API 608, ASME B16.34
Valve Size
NPS 1/2 / DN 15, NPS 10 / DN 250, NPS 1-1/2 / DN 40, NPS 2 / DN 50, NPS 2-1/2 / DN 65, NPS 3 / DN 80, NPS 3/4 / DN 20, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200
Valve Size Standard
DN, NPS
Valve Type
Automated Ball Valve, Ball, Ball Valve, Floating Ball Valve
Keystone F89 90度回転空気式アクチュエータ
供給空気圧力
最大0.83MPa(8.3Bar)
温度
-40℃～150℃
タイプ
90度回転

文書と図面

KTM Series EB1 OM-2 Split Body Floating Ball Valve
Keystone F89 90度回転空気式アクチュエータ
Emerson Powered Actuator
